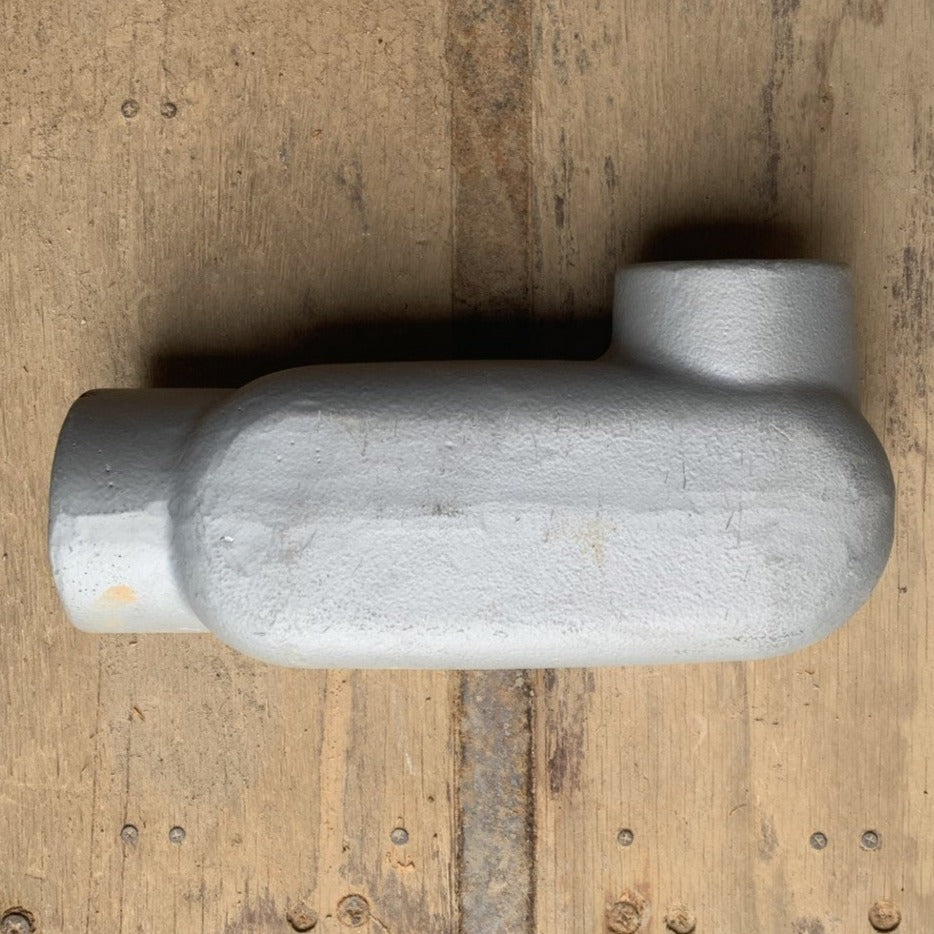

Appleton LL888 Conduit Body 3 in. – New Surplus

Appleton LL888 Conduit Body 3 in. – New Surplus

Description:

The Appleton Electric LL888 is a 3-inch FM8 Unilet Type LL conduit outlet body designed for threaded installation on rigid conduit or IMC. Measuring 13.94 inches in length and 6.69 inches in width, the body is made of electro zinc plated dichromate epoxy powder coated gray iron alloy with a neoprene gasket and stainless steel cover screw. The outlet body features two hubs at a 90-degree angle, left-side access opening, and a capacity of 217 cubic inches. It is suitable for serving as a pulling fitting, making bends in conduit systems, providing openings for splicing, connecting and changing direction of conduit runs, allowing connections for branch runs, and permitting access to conductors. The LL888 is approved to UL 514A/514B, CSA C22.2, NEC, and CEC standards, and complies with NEMA FB-1. It is designed for commercial, industrial, and hazardous location applications, with an enclosure rating of Class I Div 2.
