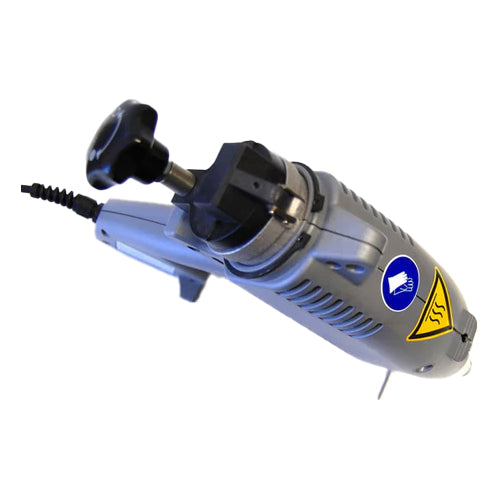

The AXCO AX200 All-Electric Hot Melt Gun simplifies the use of bulk hot melt, eliminating the need for a costly bulk tank. Designed to accommodate 43 mm. sticks, granulate, and pillows, the AX200 operates without the need for compressed air, boasting a robust 600 Watts of power that heats the unit to operational readiness in just five minutes. The ergonomic design features a large 8.4 oz. (250 ml) filling capacity with an easy-access filling hole to minimize spills and an adjustable trigger that enhances user comfort, reducing fatigue during prolonged use.
Features and Benefits
Simple, fully electric design
A single thermostat controls temperature settings up to 390°F

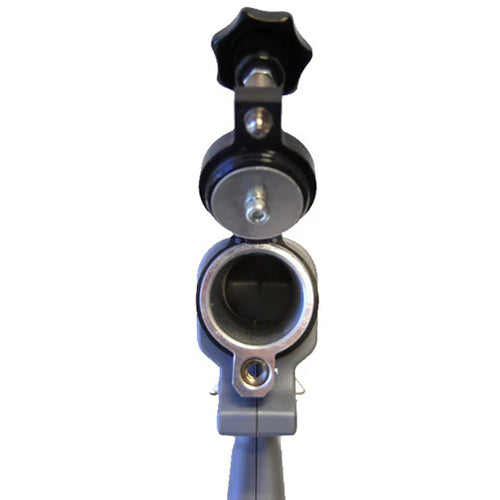

Accommodates stick or bulk adhesive – No special slugs needed – Simply remove the filler cap to refill when the unit is hot
An eyehook is provided for suspension over a workbench or along an assembly line, allowing attachment to a spring balance (Optional Accessory)
Features a drip-free dispensing nozzle
With certain Hot Melts, one trigger pull can provide single runs of up to 25 ft.
No cleaning is required – simply reheat the unit
Unlike slug guns, this unit can dispense more adhesive at any time, as the hot melt is always in liquid form
Specifications
Model: AX200
Type: All-Electric Hot Melt Gun
Recommended Melts: Hot-Melt Granulate, Pillows, and 43 mm. (1.7 in.) Sticks
Power Supply: 230V AC/50 Hz
Power Consumption: 600 Watts
Current Consumption: 2.6 Amps
Degree of Protection: I
Class of Protection: IP 30
Temperature Control: Thermostat
Temperature Limitation: Temperature Controller
Operating Temperature: 70°F to 390°F (20°C to 200°C)
