Description

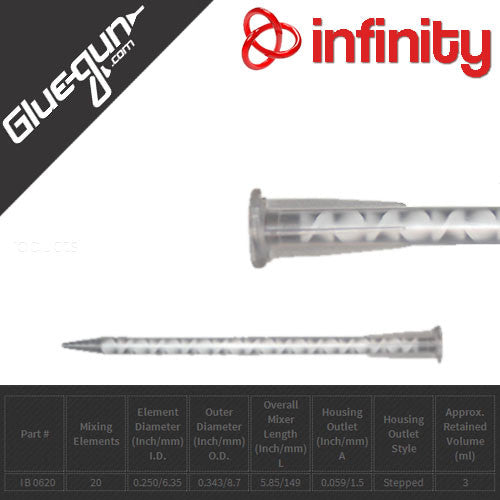

Bayonet Static Mixer for Standard 50ml Adhesive Cartridges

About the Standard 50ml Static Mixer Nozzle from Infinity Bond

The Infinity Bond IB 0620 static mixer nozzle is the go-to mixer for two part 50mil adhesive cartridges. High quality and low cost make this static mixer the perfect match when dispensing epoxies, acrylics, urethanes and more.

The Infinity Bond IB 0620 is a Bayonet mixer allowing it to work with all standard 1:1 and 2:1 50mil adhesives.

The Infinity IB 0620 is an an equivalent in everything but price to:

• 3M EPX 50 ml (UPC 00021200217913)
• Sulzer Mixpac MAH 06-21T
• Nordson 190-620, 190-620-01 & 190-620H

Contact us with questions about the IB 0620 static mix nozzle or any of your dispensing needs.

Standard 50ml Static Mixer Nozzle Specifications

• Part Number: IB 0620
• Mixing Elements: 20
• Element Diameter: 0.250 in / 6.35 mm
• Outer Diameter: .343 in / 8.7 mm
• Overall Length: 5.85 in / 149 mm
• Housing Outlet: 0.059 in / 1.5 mm
• Outlet Style: Stepped
• Approx Retained Volume: 3 m
