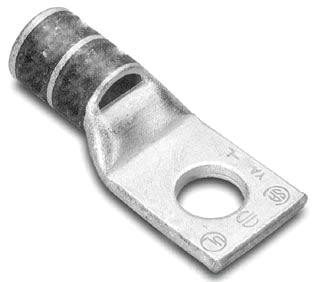

Burndy YA25LNT14 Copper Compression Lug

Burndy YA25LNT14 Copper Compression Lug, 10 Per Box – New Surplus

Description:

Pad Size:

 0.48 Inch W x 0.12 Inch Thk

Number of Pad Holes:

 1

Stud Size:

 1/4 Inch

Color:

 Pink

Die Index:

 12

Material:

 Electro-Tin Plated Copper

Overall Length:

 1.93 Inch

Approval:

 UL, CSA

Additional Information:

 RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; Tongue Type Narrow

Catalog Number:

 YA25LNT14

Brand Name:

 HYLUG[TM]

Model:

 YA-L-NT

Voltage Rating:

 600 V to 35 kV

Conductor Material:

 Copper

Conductor Size:

 1/0 AWG Solid/Stranded (Code)

Barrel Type:

 Short, Skived, Standard, Straight

Barrel Length:

 0.88 Inch

CATALOG DESCRIPTION:

 1/0 AWG CU, ONE HOLE, 1/4 STANDARD BARREL, INSPECTION WINDOW, NARROW TONGUE INTERNAL CHAMFER, TIN PLATED, UL/CSA, 90C, UP TO 35KV, PINK COLOR CODE, 12 OR 348 DIE INDEX.

Category:

 Large Terminals & Connectors

Full Technical Description:

 Electro-Tin Plated Copper Material; Pink Color; 1.93 Inch Overall Length; 0.88 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 1/0 AWG Solid/Stranded (Code) Conductor Size; 1/4 Inch Stud Size; 12 Die Index; 0.48 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Short, Skived, Standard, Straight Barrel Type; HYLUG[TM] Brand; RoHS Compatible; Includes Inspection Window; Temperature Rating 90 Deg C; Wire Strip Length 15/16 Inch; Cable Entry Type Beveled Entry, Chamfered; Tongue Type Narrow; YA-L-NT Model

Manufacturer:

 Burndy Products

Product Description:

 Burndy YA25LNT14 1/0AWG TERMINAL LUG

Proposition 65 Warning (CA):

 Warning: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Sub-Category:

 Compression Cable Lug

UPC 12 Digit:

 781810282076
