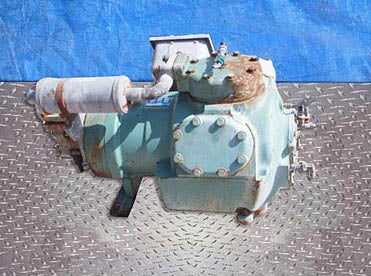

Carlyle 06ET275-360 6-Cylinder Semi-Hermetic Compressor (30 HP 230/460 V)
Carlyle 6-Cylinder Heavy Duty Semi-Hermetic Compressor- 33 Ton. Model: 06ET275360. S/N: 07J48599. Refrigerant: R-22. Nominal horsepower: 30. Displacement @ 1750 rpm: 75 cfm. Suction temperature rating: -10°F to 50°F. Power supply: 230/460 V, 130/65 FLA, 440/220 LRA, 60 Hz, 3 phase. Inlets: (1) 2 in. dia. refrigerant suction port. Outlets: (1) 1-1/2 in. dia. refrigerant discharge port. Overall dimensions: 3 ft. L x 1 ft. 11 in. W x 2 ft. H.
