Description

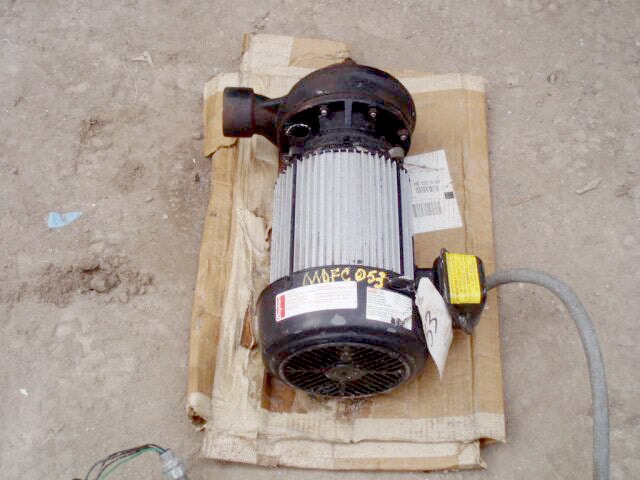

Centrifugal Pump – 5 HP
Centrifugal Pump. Impeller diameter: 5 in. U.S. Electrical Motor – 5 hp. Model: B073. Motor specifications: 3495 rpm, 208-230/460 V, 14.40-12.80/6.40 amps, 60 Hz, 3 phase. Frame: 184JM. Insulation class: F. Nema design: B. Code: H. Type: UT-4. Usable on 208 V 60 Hz @ 1730 amps max. Inlet: 2.5 in. suction port. Outlet: 2 in. discharge port. Overall dimensions: 1 ft. 8 in. L x 1 ft. 4 in. W x 10 in. H.
