• Extra power / torque for the most demanding work
• Superb for hogging out large quantities of wood or porting engines
• Offers excellent control of the cutting tool, drill, or bur while under load

Contains just about everything you need to get to work — motor, speed control, handpiece and accessories. Take the guesswork out of product selection.  The TX300 Set includes the TX Motor, the #30 Handpiece, a plastic TXR-1 Foot Pedal plus a Rotating Bur Holder and tools as pictured (subject to change without notice).  This set offers great value and big savings over the price of the individual components! Made in USA.

Foredom TX Instruction Manual

How to Replace Shaft and Sheath

Foredom TX Tool Tips

Important Safety Instructions from FOREDOM®

• Always wear proper eye and face protection—

  Always wear safety glasses and or a face shield when using rotary power tools. Regular eyeglasses do not provide sufficient protection.

• Never wear loose clothing or jewelry and tie back long hair—

  Ties, scarves, jewelry and long hair pose a hazard when using rotary power tools.

• Never use accessories at speeds above the maximum RPM—

  Accessories used at faster than the recommended speed can become damaged, and hazardous to you and others in the work area. Always check the speed rating.

• Never use a damaged accessory—

  If an accessory appears to be bent, loose, vibrating or out of balance do not continue to use it. Use a clean sharp accessory that is recommended for the material you are working on. Let the speed of the tool do the work. Do not force the tool or use excessive side pressure.

• Always use dust collection, respirator, or face mask to prevent inhalation of dust particles from workpiece or abrasives.

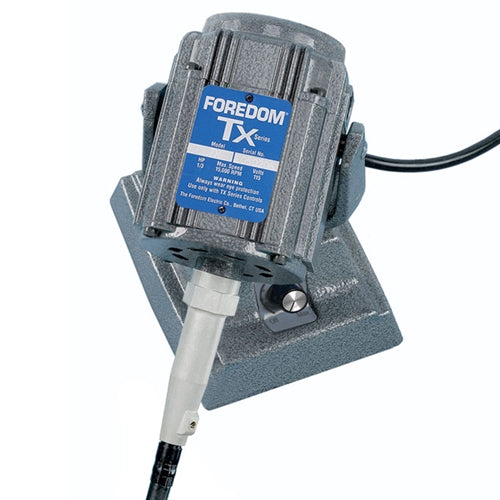

1. TX Motor: Foredom’s most powerful flex shaft machine with 1/3HP. The TX motor is a permanent magnet DC motor that features the latest in flex shaft technology. This ball bearing model utilizes advanced rare earth magnets (in place of the wound fields in the universal type Series SR motors) that deliver more torque at the low end and throughout the entire speed range of 500 to 15,000 RPM. No other flex shaft gives you greater control of the cutting tool, drill, or bur under any load! It comes equipped with a motor bale for hanging and standard 39″ long key-tip inner shaft and outer sheath.
2. #30 Handpiece: The #30 is our most popular general-purpose handpiece featuring a 3-jaw chuck with 0″–5/32″ capacity. Supplied with a large chuck key for easy accessory changes.
3. TXR-1 Foot Rheostat: Features solid state circuitry in a heavy duty plastic housing with an extra wide footprint, low profile, and non-skid pads on the bottom. 7″ long, 4-1/2″ wide, 2-3/8″ high.
4. SXR-1 Foot Rheostat: Solid-state foot-operated speed controller for immediate response with light pressure. Features heavy-duty, low-profile cast-iron housing with ribbed top and skid-resistant bottom for comfort and stability. Runs continuously without heat buildup. Measures 6-1/4″L x 5″W x 2-1/4″H.
5. Foredom Accessory Kit: A 43-piece assortment of professional jewelers/metal working accessories. Includes: ScotchBrite EXL Wheels, CW Polishing Wheels, Platinum White Compound, Rubber Bonded Abrasive Wheels, Jewelers Burs, Ceramic Purple Sanding Bands, Felt and Cotton Buffs, Mounted Brushes, Mandrels, Engraving Burs, V Stone Wheel and more. (Included only with TX300 Set. Not included with TX-30-SXR Set.)
6. Rotating Bur Holder for 3/32″ shank accessories. (Included only with TX300 Set. Not included with TX-30-SXR Set.)
7. Flexible shaft grease and an extra pair of motor brushes.
