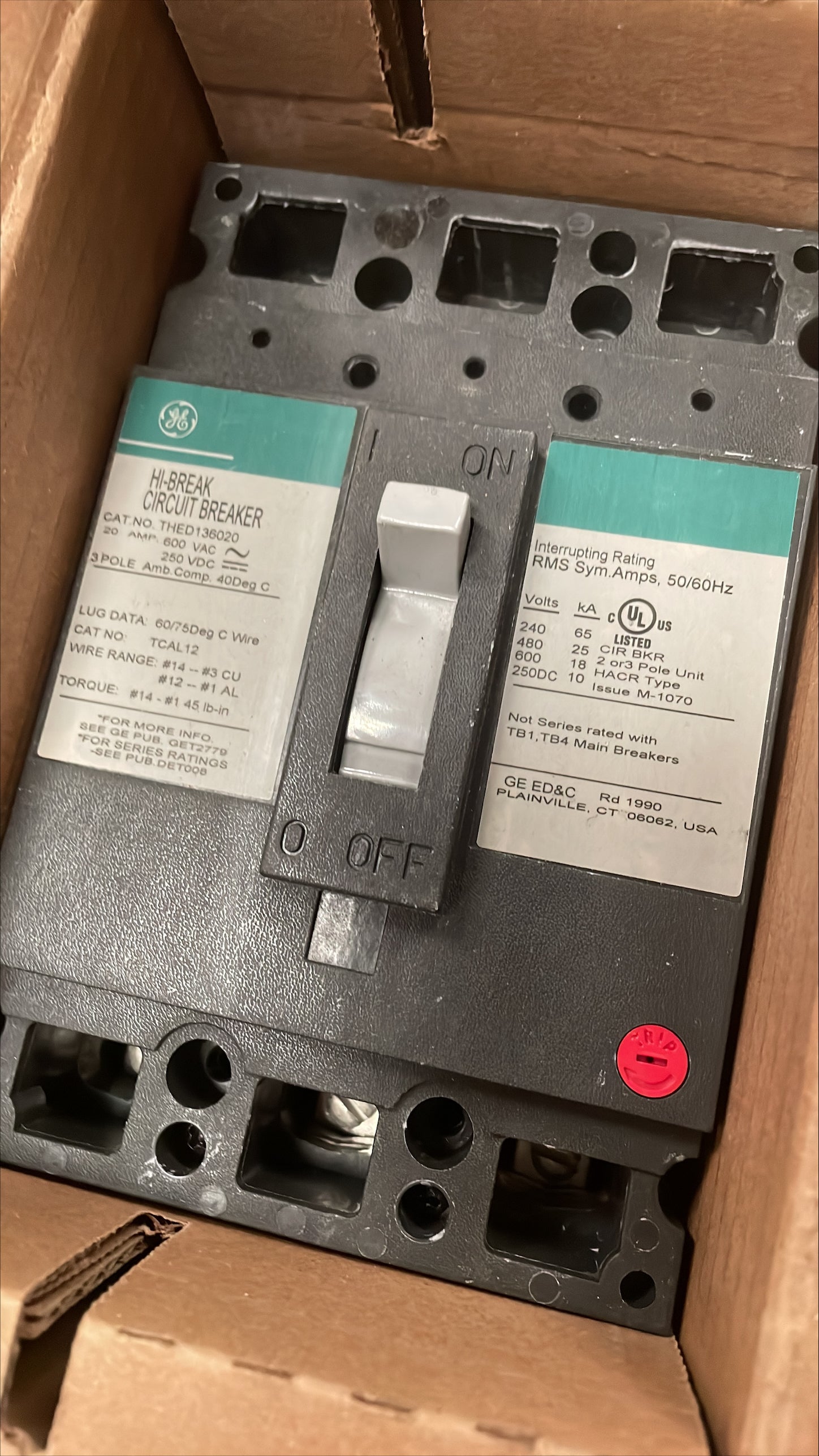

General Electric THED136020 3 Pole Circuit Breaker – New Surplus

General Electric THED136020 3 Pole Circuit Breaker-New Surplus

Ready to Ship Next Business Day

The General Electric THED136020 is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 20 Amps and a voltage rating of 600V. It has an interrupting rating of 10kA at 125/250VDC, 25kA at 277/480VAC, 65kA at 120/240VAC. The THED136020 has a bolt-on connection type and includes LI – long time and instantaneous functions.

Brand

General Electric

Series

THED

Amperage

20

Voltage

600

Poles

3

Phase

3

Approval

UL

Interrupting Rating

10 at 125 V dc kA, 10 at 250 V dc kA, 25 at 277 V ac kA, 25 at 480 V ac kA, 65 at 120 V ac kA, 65 at 120/240 V ac kA, 65 at 240 V ac kA

Connection Type

Bolt-On

Protection

Thermal Magnetic

Functions

LI – Long-Time and Instantaneous

Terminal Connection

Load side lug

Length (in)

3.9

Width (in)

4.15

Height (in)

6.3

Mpn

THED136020-R

Upc

783164062892

Gtin

783164062892
