Description

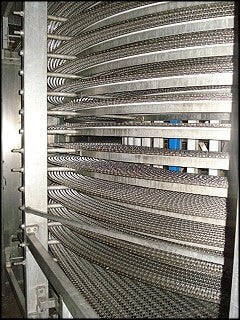

I.J. White Corporation Spiro-Freeze Spiral Freezer

I.J. White Spiro-Freeze Spiral Freezer. Model: 26-A1–577. Features: bolted construction, bottom load “up go” design and an I.J. White control panel. CRam Industrieser hour meter: 28,151 hrs. Belt details: 670 ft. L x 26 in. W x 2-1/4 in. H product clearance. Belt material: stainless steel. Drum Frame model: 26-AL-601-F. Drum size: approximately 12 ft. dia. Number of tiers: 13. Drum Frame material: aluminum. Belt speed: 30 FPM. Dwell time: 21 minutes. Main drum drive motor: 3 hp, 230/460 V, 3 phase. Sew Euro drive. Ratio: 126.75, Out feed motor: 1.5 hp, 208-230/460 V, 3 phase. *Note: this listing does not include insulated box panels, evaporator coils, compressor, or condenser (we can quote those items if needed). Approximate spiral dimensions: 16 ft. L x 16 ft. W x 9 ft. 4 in. H
