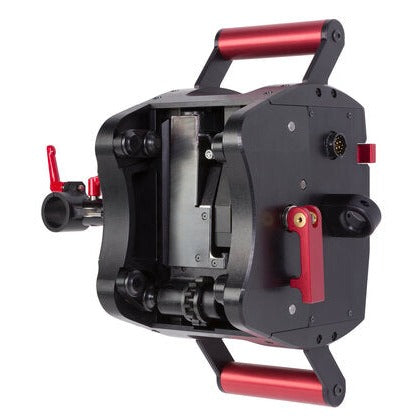

Lincoln Electric K52101-1 Helix M85 Weld Head – Reconditioned

Lincoln Electric K52101-1 Helix M85 Weld Head – Reconditioned with 1 Year Operational Warranty

Description:

The HELIX M85 weld head is a cutting-edge, versatile, and user-friendly orbital and linear welding solution that seamlessly integrates digital capabilities with an ergonomic design, making it suitable for a wide range of welding processes, from FCAW to Hot Wire Laser welding. Built around the advanced multi-process capabilities of the Power Wave® equipment, the HELIX M85 weld head is designed to adapt to evolving welding processes and grow with your needs, thanks to its digital nature that allows for major upgrades with minimal technical expertise. The weld head’s streamlined design, with all motors and harnesses packaged inside, reduces visual confusion and highlights human touch points in red for easy adjustments, while the patented track ring enables a single person to mount and dismount the weld head effortlessly, thanks to its lightweight construction and intelligent mechanical features that automatically adjust for different track ring diameters – all while maintaining the rugged and reliable performance expected from Lincoln Electric’s welding experts.

Product Name: HELIX M85 Weld Head

Product Number: K52101-1

Input Power: 24V DC

Input Current: 9A Max

Travel Speed ipm (mm): 0.1 min-120 max (2.54 min-3048 max)

Clearance – in (mm): Radial: 8.5 (215.9), Axial: 19.75 (501.7)

Oscillation Stroke in. (mm): 2.00 (50.8)

Motorized Height Control Stroke in (mm): 2.00 (50.8)

Lead/Lag Torch Tilt:  In 360°, Out: 60°

Dimensions (H x W x D) in (mm): 8.33 x 14.25 x 6.85 (211.6 x 362.0 x 174.0)
