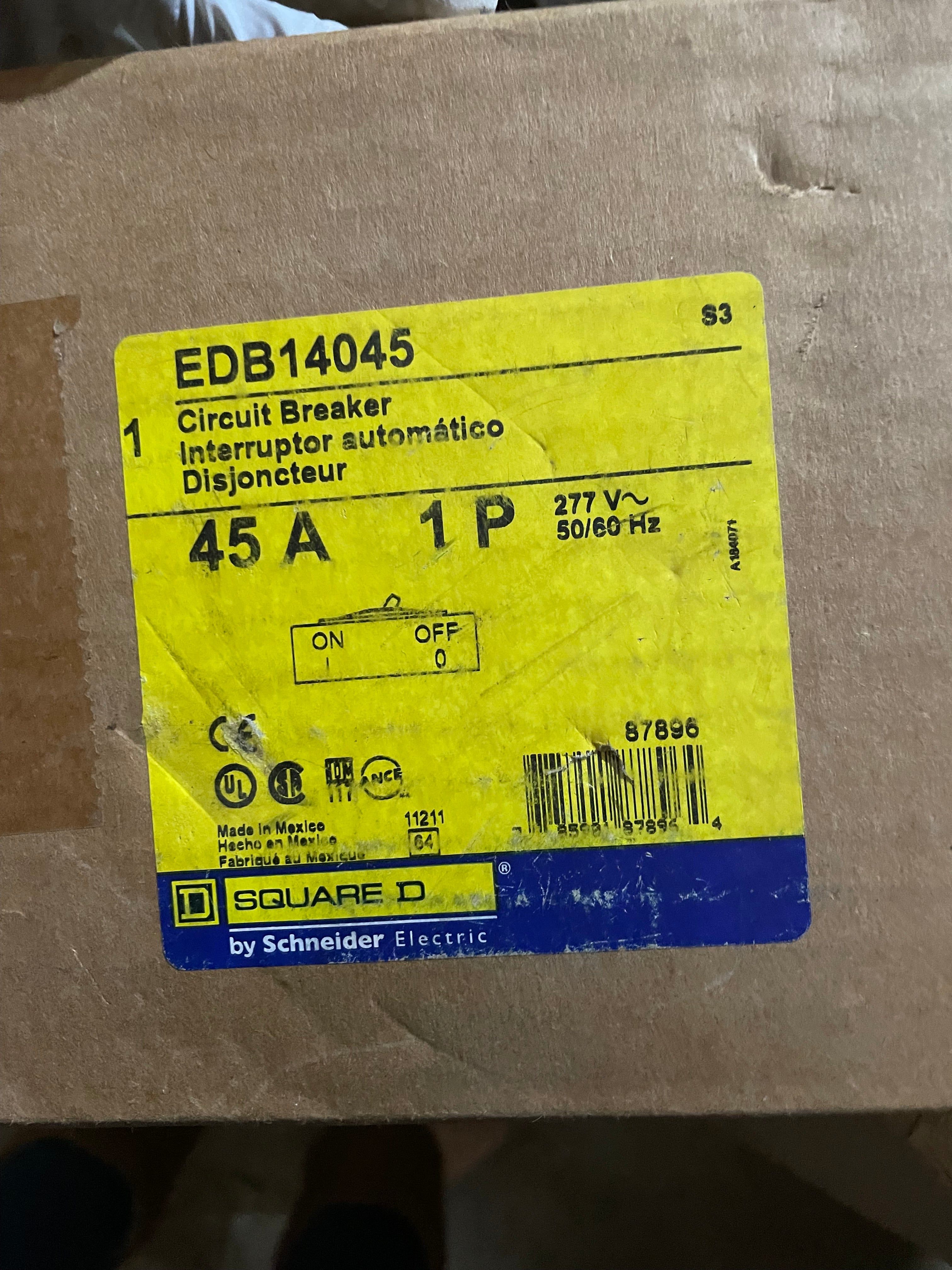

Schneider Electric EDB14045 Square D Circuit Breaker 45A 1P – New Surplus

Schneider Electric EDB14045 Square D Circuit Breaker 45A 1P-New Surplus

Ready to Ship Next Business Day

Schneider Electric / Square D’s EDB14045 bolt-on molded case circuit breaker is a reliable and easy-to-install device designed for use in Square D NF Panelboards. This circuit breaker is CSA-rated, HID-rated and HACR-rated, and UL Listed as High-Intensity Discharge.

The EDB14045 is a 1-pole bolt-on circuit breaker, rated at 45A at a system voltage of 277V AC. The circuit breaker has a thermal-magnetic trip unit and a signal indicator to indicate when a trip occurred. The device has a hold current of 270A (the maximum current the breaker can be held at to ensure a trip will occur) and a trip current of 875A (the current value when the breaker is guaranteed to trip).

Square D’s EDB14045 circuit breaker is calibrated for 40 degrees C and has aluminum lugs with a terminal lug rating of AWG 12…AWG 6 (aluminum) and AWG 14…AWG 6 (copper).

Product Specifications

Manufacturer: Schneider Electric / Square D

Family: EDB Series

Pole: 1

Amp: 45

Volt: 277

Phase: 1

Category: Molded Case / 1-Pole

Connection: Bolt-On

Type: EDB

Functions: LI – Long-Time and Instantaneous

Protection: Thermal Magnetic

AIC Ratings: 18kA@277V | 25kA@240V | 25kA@120V
