Sulzer Mixpac Statomix ME Series Bell Mixer Nozzles Discount

Original price was: $2,216.00.Current price is: $385.82.

SKU: US-116118250 Categories: , Tags: , , , , , , , , ,

Description

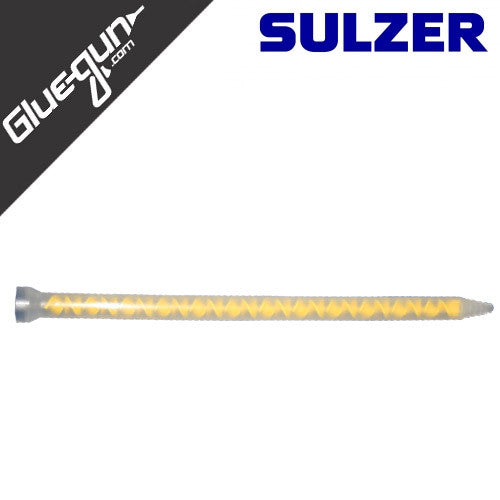

Sulzer Mixpac Statomix ME Series Bell Mixer Nozzles

About the Sulzer Mixpac ME Series Bell Mixer Nozzle

The Sulzer ME Series static mixer nozzles are a tried and true mixer for dispensing adhesive with meter mix equipment. The ME nozzle has a stepped tip which can be cut to adjust the dispensing volume and is available many different element and diameter configurations.

The ME static mixer uses a Bell connection and is one of the most popular two part machine mixers on the market today.

Contact us for bulk pricing or less than case quantities. As always, we offer a low price guarantee on the Sulzer ME static mixer.

Works With:

  • 1:1 Adhesives
  • 2:1 Adhesives
  • 4:1 Adhesives
  • 10:1 Adhesives

ME Static Mixer Configurations

  • Sulzer ME 05-24T
  • Sulzer ME 05-32T
  • Sulzer ME 06-24T
  • Sulzer ME 06-32T
  • Sulzer ME 06-48T
  • Sulzer ME 08-24T
  • Sulzer ME 08-32T
  • Sulzer ME 10-24T
  • Sulzer ME 10-32T
  • Sulzer ME 13-24T-02
  • Sulzer ME 13-24T
  • Sulzer ME 13-32T-02
  • Sulzer ME 13-32T

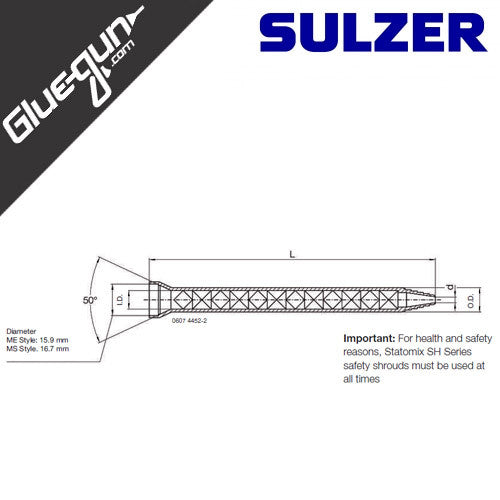

Note: The difference between the ME and MS Series static mixers is the  inner diameter of the bell mouth housing. The ME Series is equal to 15.9mm and the MS Series is equal to 16.7mm.

Sulzer Mixpac ME Bell Mixer Specifications

Elements: Polyacetal (POM)

Housing: Polypropylene (PP)

Sulzer MixPac ME Series Specifications and Part Numbers

Machine Mixer PP, with POM blue elements and stepped tip.

Part number Article/Number Elements inner Ø(mm) outlet Ø mm L(mm) max pressure
102448 ME 05-24T 24 5 1.5 149 33
102449 ME 05-32T 32 5 1.5 188 33
102450 ME 06-24T 24 6.4 1.8 186 30
102451 ME 06-32T 32 6.4 1.8 235 30
102452 ME 06-48T 48 6.4 2.4 334 30
102453 ME 08-24T 24 8 2.4 223 27
102454 ME 08-32T 32 8 2.4 289 27
102456 ME 10-24T 24 10 3 276 22
102457 ME 10-32T 32 10 3 355 22
102460 ME 13-24T-02 24 13 4 350 17
102459 ME 13-24T 24 13 4 293 17
102462 ME 13-32T-02 32 13 4 453 17
102461 ME 13-32T 32 13 4 378 17

Additional information

Mixing Elements/Element Diameter

24 Elements / Diameter 5.0 mm, 32 Elements / Diameter 5.0 mm, 24 Elements / Diameter 6.40 mm, 32 Elements / Diameter 6.40 mm, 48 Elements / Diameter 6.40 mm, 24 Elements / Diameter 8.0 mm, 32 Elements / Diameter 8.0 mm, 24 Elements / Diameter 10 mm, 32 Elements / Diameter 10 mm, 24 Elements / Diameter 13 mm (350mm Long), 24 Elements / Diameter 13 mm (293mm Long), 32 Elements / Diameter 13 mm (378mm Long), 32 Elements / Diameter 13 mm (453mm Long)
Outlet Diameter

1.5mm, 1.8mm, 2.4mm, 3mm, 4mm
