Description

ULTRAMAX® MF Touch Complete 3-in-1 Package (Z-6X)

The Multi-Function Ultramax™ MF TOUCH gives you the
versatility of ultrasonic and mechanical polishing in one!

Incorporates touch screen control of operation and read out. Polishes
slots, ribs, and intricate details with ease. Short
stroke and fast reciprocation provide total control over the most
demanding polishing tasks. Special
control functions make any finish possible, letting you polish right up to
a wall or finish to an edge. Ultramax™ MF TOUCH handles even the toughest metals,
including tungsten carbide and titanium. Everything from milled surfaces to
rough EDM surfaces can be polished to a mirror finish. Use all grades of
finishing stones, sintered, resin, and plated diamond tools, as well as ceramic
stones, and metallic & nonmetallic lapping tools with diamond compounds.

The MF TOUCH utilizes a high-efficiency microprocessor to
deliver power to ultrasonic, brushless DC, and brush-type DC handpieces.
Includes an ultrasonic handpiece with 36W of continuously variable power for
precision reciprocating action. Also includes the Gesswein BH-60 a 230 watt, 50,000rpm brushless micromotor handpiece as well as the Z-6X reciprocating handpiece a 30V DC air-cooled motor with sealed bearings.  The MF TOUCH can also operate any of the other Gesswein PowerHand
rotary, side-to-side, or belt sander handpieces (all sold
separately).

Our 3-1 package also includes a sturdy, powder-coated steel cabinet with 2 ample sized storage drawers and holders for all 3 included handpieces. Keeps you organized and your handpieces within easy reach.

Complete 3-in-1 Package Includes:

• MF TOUCH Controller

• MF Ultrasonic Handpiece

• BH-60 Rotary Handpiece

• Recipro Z-6X Profiler Handpiece

• 3-in-1 MF TOUCH Cabinet

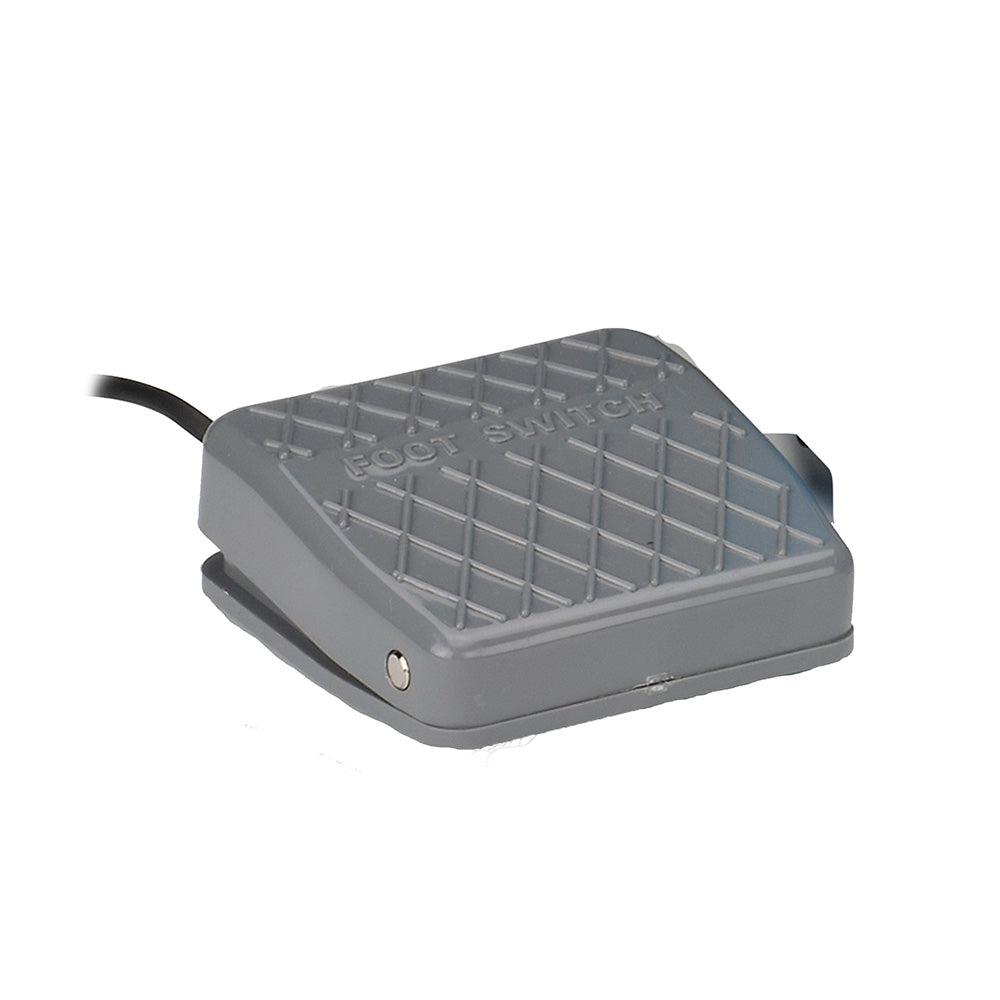

• Variable speed foot rheostat

• Handpiece rest, 3mm round tool holder, 1mm & 3mm flat clamp tool holders and tool changing wrenches



Adjustable Operating Frequency:	18-26kHz
Stroke Amplitude:	3-40 Microns
Max. Power Consumption:	300 watts
Overload Indicator:	Yes
Max. Output Power:	36W
Output DC Rotary Tool:	5-32V DC, Max. 180 W
Output DC Brushless Tool:	1,000-50,000 rpm, Max. 250 W
Electrical:	90-240VAC 50/60Hz
Fuse:	3A 20mm time-lag
Controller Dimensions:	6.75″W x 9.5″D x 5.5″H
Controller Net Weight:	5.5 lbs.
